Reliable Work Platforms and Hoists in Sydney

0406 928 880

WORK PLATFORMS SYDNEY


Looking for a better alternative to tubular scaffolds? ELEVADORES ALHER offers two different models of Mast Climbing Work Platforms (MCWP), including PM 200 and PM 210. These models share all the same structural features with the exception of varying platform widths.

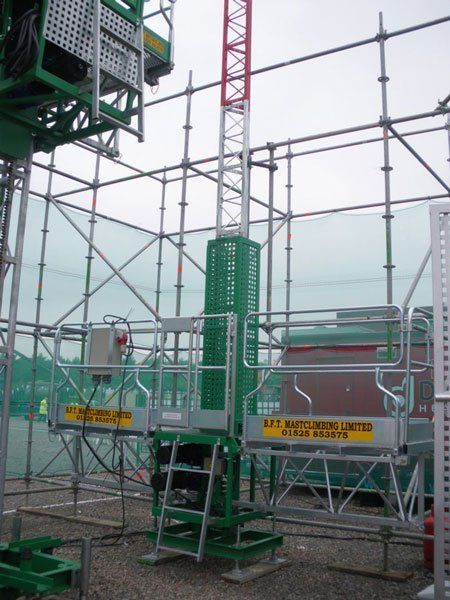

PM 200 Single Mast


Frequently Asked Questions

    Technical and structural features

        Platform width: 0.9 m
        Maximum length: 10 m
        Maximum payload: 2.150 Kg

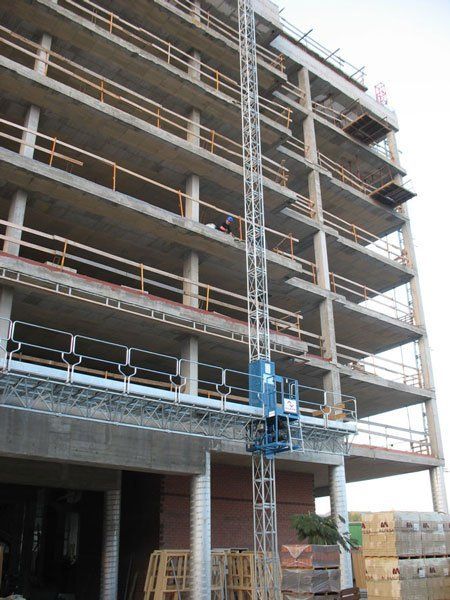

PM 200 Double Mast


Frequently Asked Questions

    Technical and structural features

        Platform width: 0.9 m
        Maximum length: 30.5 m
        Maximum payload: 3.700 Kg

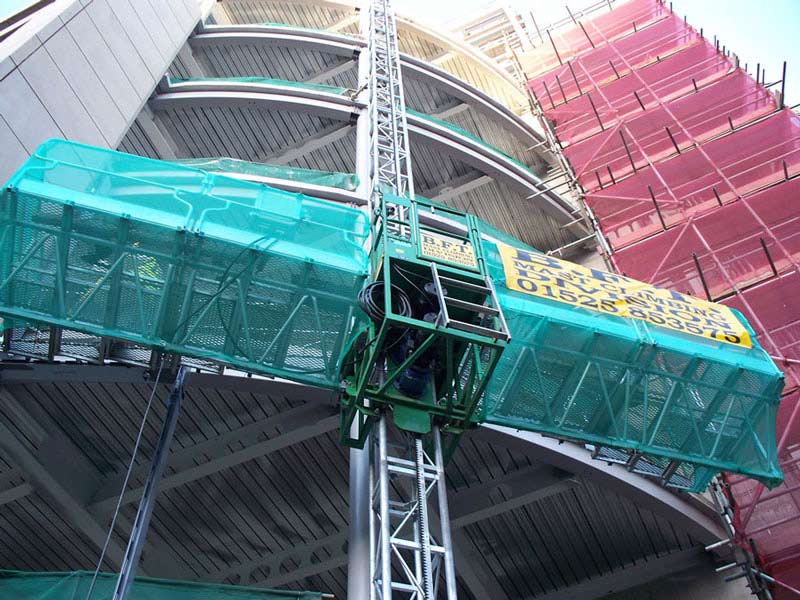

PM 210 Single Mast


Frequently Asked Questions

    Technical and structural features

        Platform width: 1.1 m
        Maximum length: 10 m
        Maximum payload: 2.100 Kg

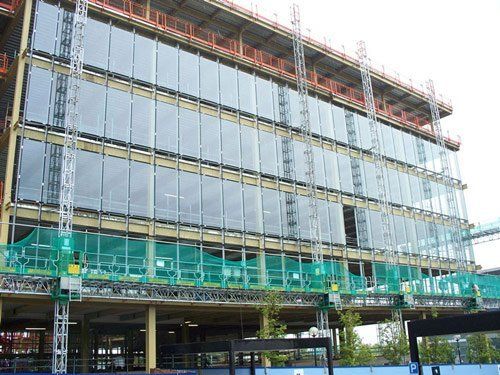

PM 210 Double Mast


Frequently Asked Questions

    Technical and structural features

        Platform width: 1.1 m
        Maximum length: 30.5 m
        Maximum payload: 3.560 Kg

Icrane is the most reliable work platform supplier in Sydney. If your project requires a work platform, get in touch today to discover our range of options for work platforms in Sydney. Our team can consult with you regarding your requirements and provide you with the option to best suit your construction project. You can be assured that all our work platforms in Sydney are manufactured to the finest quality, in line with strict safety requirement.

RACK AND PINION HOISTS


We offer a range of ELEVADORES ALHER building hoists as temporary installations for building sites and public works. The T2-CR features a wide platform and heavy load capacity while the T25-CR model provides an extra platform for large goods, such as plaster panels and door frames.

The T7-CR is adaptable for limited work spaces because it can be manufactured to fit the dimensions of lift shafts, roof repairs and renovations.

Maximum platform dimensions are measured in width x length/ m. We measure the internal and platform gate openings by the dimensions for the case of containerised cargo/ m. Although these are standard dimensions, you can adapt the model to other dimensions.

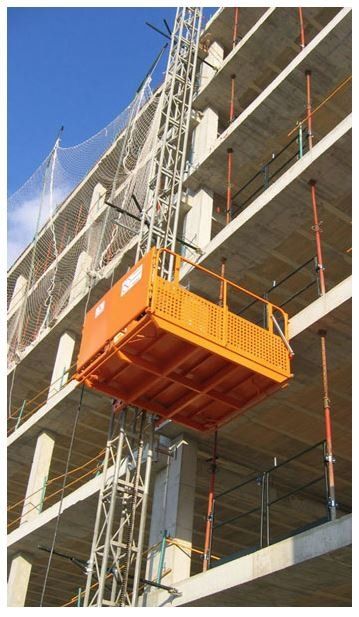

T2-CR


Frequently Asked Questions

    Technical and structural features

        Maximum payload: 1.500 Kg
        Lifting speed: 27 m/min. (50 Hz) or 33 m /min. (60 Hz)
        Maximum height: 100 m
        Internal: 1.8 x 2.0
        Platform gate opening: 1.76

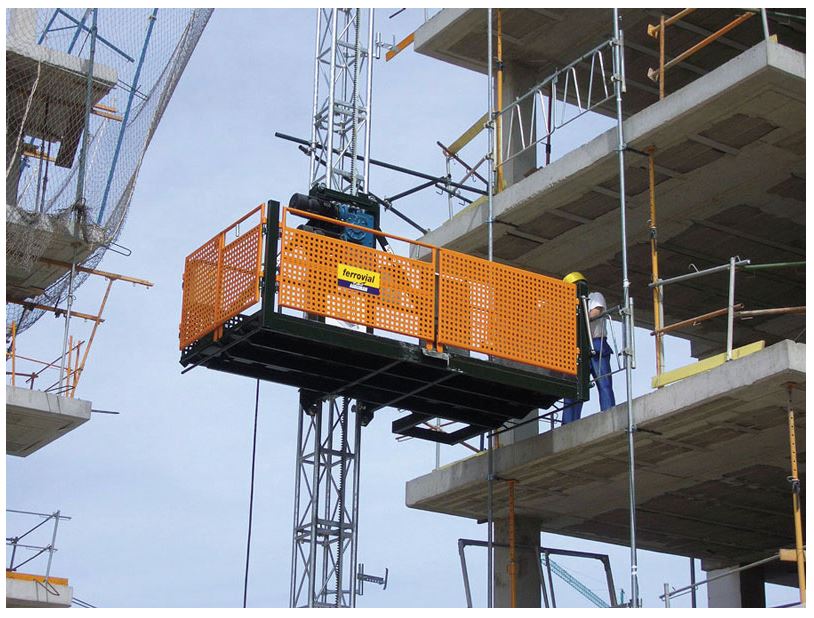

T25-CR


Frequently Asked Questions

    Technical and structural features

        Maximum payload: 1.500 Kg
        Lifting speed: 27 m/min. (50 Hz) or 33 m /min. (60 Hz)
        Maximum height: 100 m
        Internal: 1.64 x 3.2
        Platform gate opening: 1.60/2.92

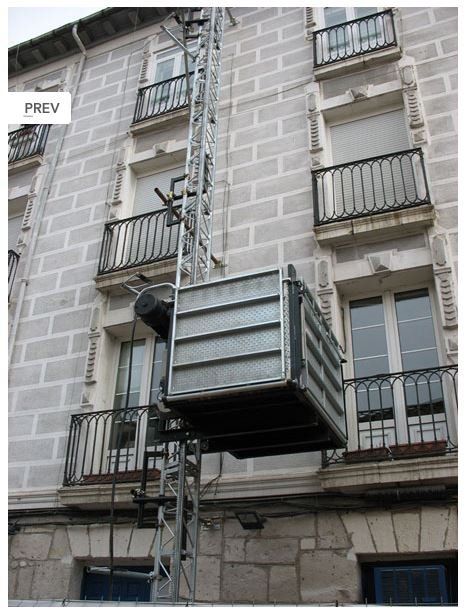

T7-CR


Frequently Asked Questions

    Technical and structural features

        Maximum payload: 600 Kg
        Lifting speed: 22 m/min. (50 Hz) or 27 m/min. (60 Hz)
        Maximum height: 100 m
        Internal: 1.1 x 1.6
        Platform gate opening: 1.0/1.44

We only supply high-quality products

LEARN MORE TODAY


Searching for a work platform and hoists in Sydney to complete your construction project?
Learn more about ALHER rack, pinion hoists and other work platforms by giving us a call now.
0406 928 880
