Maximum payload: 1.000 Kg/10
Maximum height: 120 m
Lifting speed: 27 m/min. (50 Hz) or 33 m/min. (60 Hz)
Cabin’s internal dimensions: 1.5 x 1.8 x 2.1
Gate opening: 1.4 x 2.0
You can increase the maximum height by learning more about variations to the basic configuration of the lift.

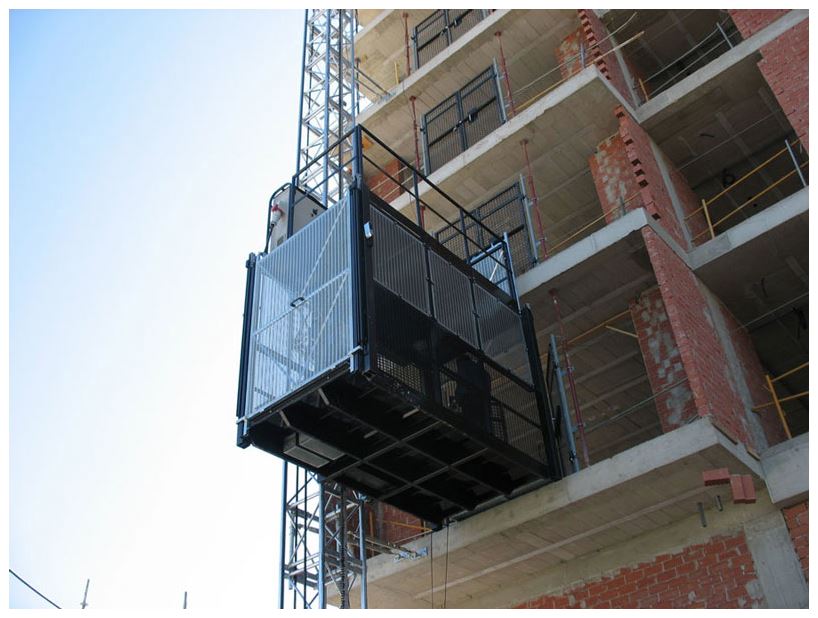

We offer three sizes of this model that can hold differing payloads.
Maximum payloads: 1.000 Kg/12, 1.500 Kg/18 and 2.000 Kg/20
Lifting speed: 39 m/min. (50 Hz) or 48 m/min. (60 Hz)
Maximum height: 150 m
Cabin’s internal dimensions: 1.6 x 2.4 x 2.1 or 1.6 x 3.2 x 2.1
Gate opening: 1.5 x 2.0
You can increase the maximum height by learning more about variations to the basic configuration of the lift.

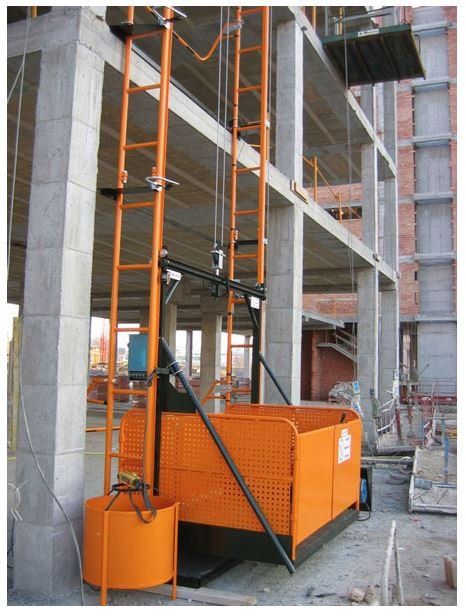

Maximum payload: 1.300 – 1.500 Kg/12
Maximum height: 100 m
Lifting speed: 27 m/min. (50 Hz) or 33 m/min. (60 Hz)
Cabin’s internal dimensions: 1.8 x 2.0 x 2.0
Gate opening: 1.7 x 2.0

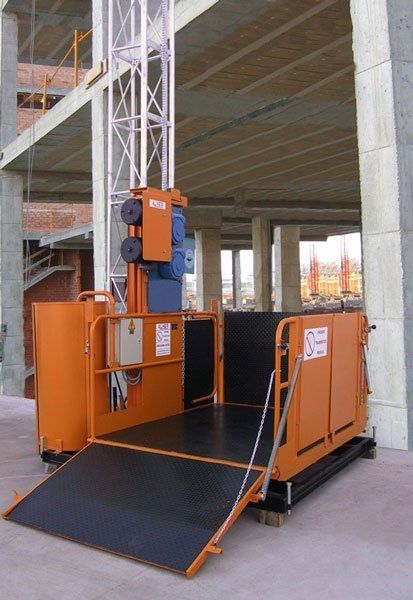

Maximum payload: 1.300 Kg/15
Maximum height: 100 m
Lifting speed: 27 m/min. (50 Hz) or 33 m/min. (60 Hz)
Cabin’s internal dimensions: 1.50 x 3.0 x 2.0
Gate opening: 1.4 x 2.0

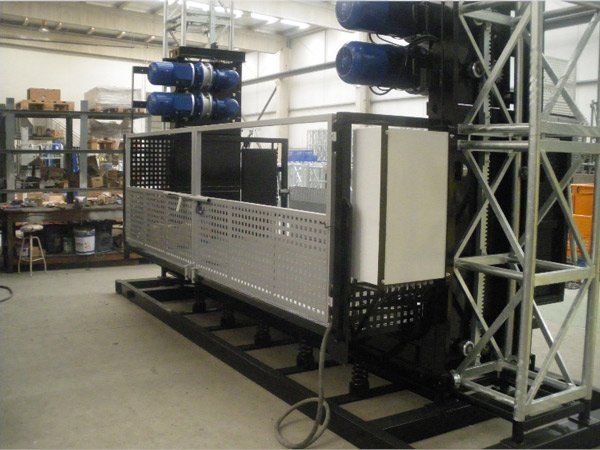

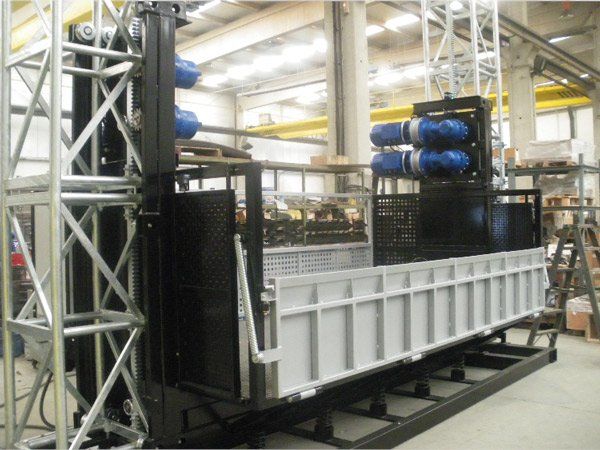

Dimensions: 4 meters x 2 meters
Lifting capacity: 4 Tonne
Height: up to 100 meters

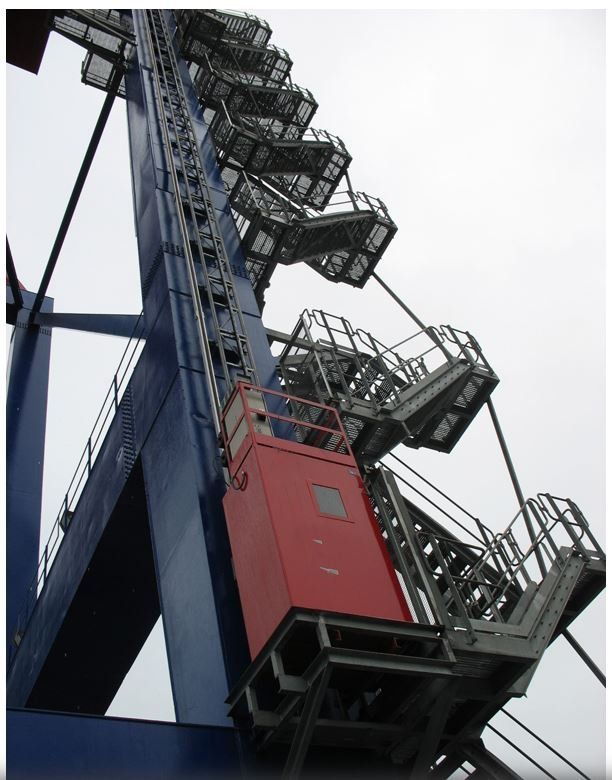

If you operate a port gantry crane, ALHER T3-CR model can provide better access to the cab of your equipment. This model is attached to the crane’s structure.

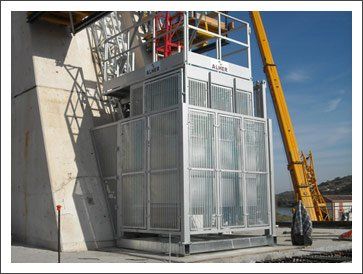

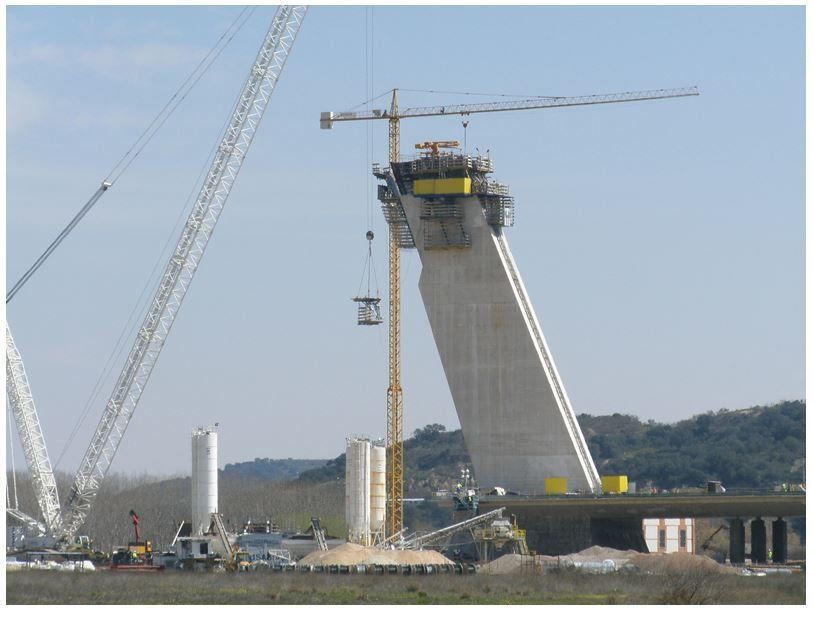

Working on a bridge with an inclined pylon in the median strip? ALHER elevators with an inclined mast can provide access to the sliding formwork so you can continue with construction on the pylon.
We can manufacture customised units that are made to measure for the degree of inclination on the pylon and the height of your project.
Maximum platform dimensions are measured in width x length/ m.
Maximum payload: 1.000 Kg
Lifting speed: 27 m/min. (50 Hz) or 33 m/min. (60 Hz)
Maximum height: 100 m
Internal: 1.4 x 2.0
Platform gate opening: 2

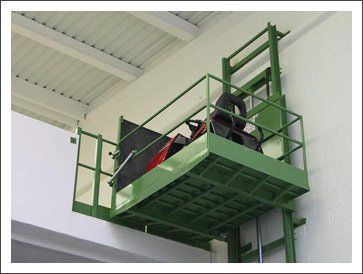

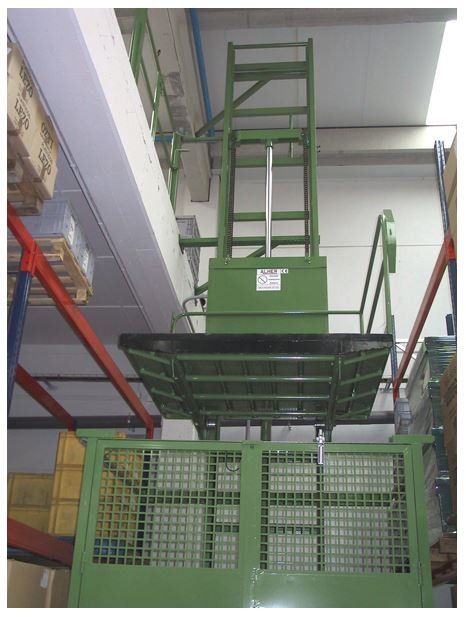

Some of the technical features of ALHER industrial lifts include a light levelling system for high-load capacity platforms and a control system with push buttons for each stage and an emergency stop knob. It also uses a hydraulic cylinder for its elevation system where multiplication is performed by chains with a safe coefficient.
Its hydraulic system is made up of an oil pump, maximum and minimum pressure regulators and an electrically operated valve and restrictor valve.
The electric system uses a power supply of 220/380 V. tri-phase or mono-phase with a switching voltage of 24 V. The engine power ranges from 1 to 12 HP which varies depending on the load capacity.
